Clock Hands for High Torque Movements

mounting hole

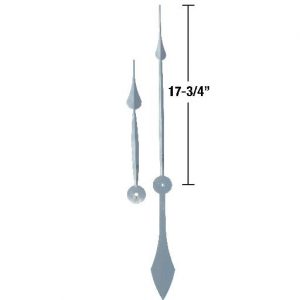

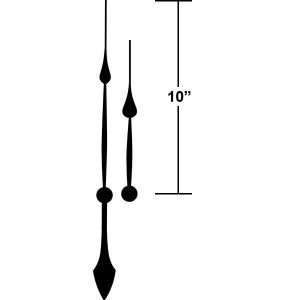

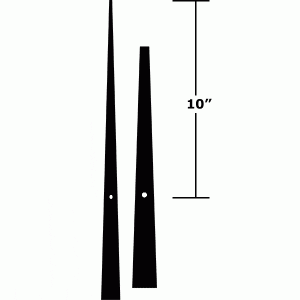

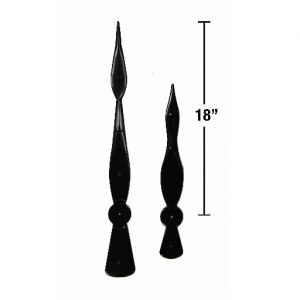

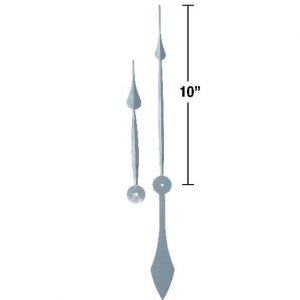

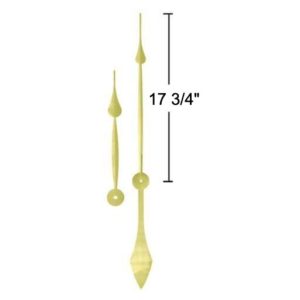

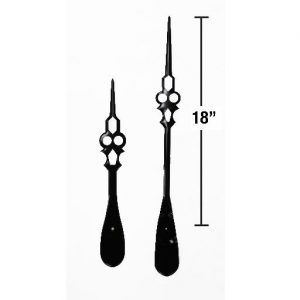

Our large pairs of hour and minute hands are specifically made for use with our high torque movements. These motors have more power, so they will operate pairs of hour and minute hands up to nearly 18 inches in length.

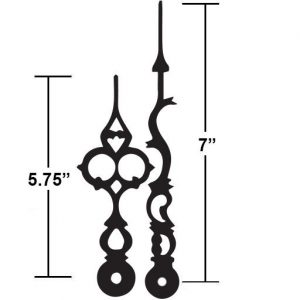

This length is based on the measurement of the minute hand only (the long one), from the center of the mounting hole to the tip, or end of the hand that points at the present time. The length of the hour hand is not considered when checking hour and minute hands. It is normally 2/3 of the length of the minute hand, depending on the style.

Large minute hands usually have a “tail” for balancing, but that length is not included in the measurement of the minute hand. People often include the length of the “tail” and measure the overall length of the minute hand. This is not correct. Just measure from the middle of the mounting hole to the tip to get the correct length of your minute hand.

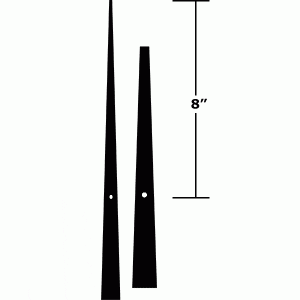

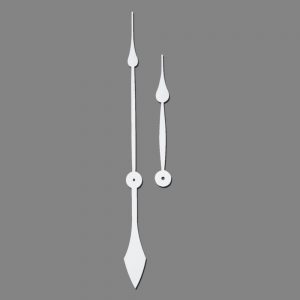

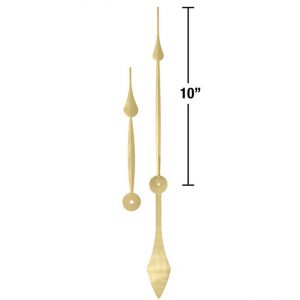

All of our large hands 8 inches or longer are “balanced”. They have a “tail” or counterweight on the back side. If you were to place the mounting hole on your fingertip the minute hand would actually lay flat or “balanced” on your fingertip.

If you are considering re using large hands you may have, it’s very important to check if your minute hand 8 inches or longer is actually “balanced”. It’s very important to check this. If your long minute hand is not balanced, it can cause the motor to run slowly, or possibly not at all.

Often you can check for this problem by letting the large clock operate on its back. If it runs when on its back, but will run correctly in a normal upright position, then you probably have a minute hand that is too heavy or out of balance. The maximum balanced weight for our

It’s also important to check the mounting hole sizes we show in the upper left of this page. Look closely, they are actually measured to within a tolerance of plus or minus .002 inches. You would need a micrometer or calipers to make this measurement. So please be careful here.

Clock Hand mounting hole sizes simply are not standardized. It can be a pain in the neck. The hands we show for almost all of our movements use the American “I” shaft configuration. This means that the minute hand has an oblong hole with two flat sides, and is held in place with a small round nut. The hour hand is a “press-on” so the hole is round.

There is even a German version of the “I” shaft. The minute hand hole size is the same as the American version. The hour hand hole size is different by a total of .004 inches smaller. Just enough that the hour hands will not be interchangeable.

If you cannot take careful measurements of the mounting holes in your clock hands, then it would be best to buy new hour and minute hands when replacing the clock motor. Always buy clock hands from the movement or motor supplier so you are sure they are compatible.
